WHAT IS AUSTEMPERED DUCTILE IRON?

Austempered Ductile Iron (ADI) is a specialized type of ductile iron that undergoes a distinct heat treatment process known as austempering. Ductile iron, also called nodular cast iron, is produced by adding small amounts of magnesium to molten iron, leading to the formation of graphite nodules within its microstructure, which enhances its ductility and toughness.

ADI distinguishes itself through austempering, where ductile iron is heated to temperatures within the austenite phase range and then rapidly quenched in a specific temperature range, typically between 250°C and 450°C (480°F and 840°F). This rapid cooling transforms the austenite into a structure called ausferrite, consisting of acicular ferrite and high-carbon austenite.

The resulting microstructure of ADI provides a unique balance of strength, toughness, and wear resistance, exceeding that of conventional ductile iron and some steel grades. This blend of properties makes ADI suitable for diverse applications, including automotive components, machinery parts, gears, and construction equipment, where attributes like high strength-to-weight ratio, impact resistance, and wear performance are crucial.

  • Austempered ductile iron (ADI) stands out for its remarkable strength, rivaling that of certain low-alloy, quenched and tempered, or forged steels. This robustness facilitates the creation of lighter components without compromising on performance.

  • ADI boasts impressive toughness and ductility, rendering it highly resistant to fracturing even under intense stress. This attribute proves invaluable in scenarios where resilience to impact is paramount.

  • The distinctive microstructure of ADI lends itself to exceptional wear resistance, making it well-suited for applications subjected to abrasive wear or sliding contact.

  • ADI exhibits superior fatigue resistance compared to many other materials, ensuring prolonged service life under cyclic loading conditions. This quality makes it ideal for components enduring repetitive stress or vibration.

  • Despite its formidable strength and hardness, ADI can be machined relatively easily compared to certain other high-strength materials. This eases manufacturing processes, leading to cost and time savings.

  • ADI's blend of high strength and machinability can translate to cost efficiencies in manufacturing compared to materials like steel, particularly in applications necessitating weight reduction.

  • ADI's ability to be cast into intricate shapes with thin walls allows for elaborate designs and consolidation of multiple components into a single casting. This streamlines assembly and lowers production expenses.

  • While not inherently corrosion-resistant like stainless steel, ADI can be coated or treated to enhance its corrosion resistance for specific applications, further widening its utility.

WHY AUSTEMPERED DUCTILE IRON (ADI)?

WHY Ay Döküm FOR ADI?

5000 tons/year capacity

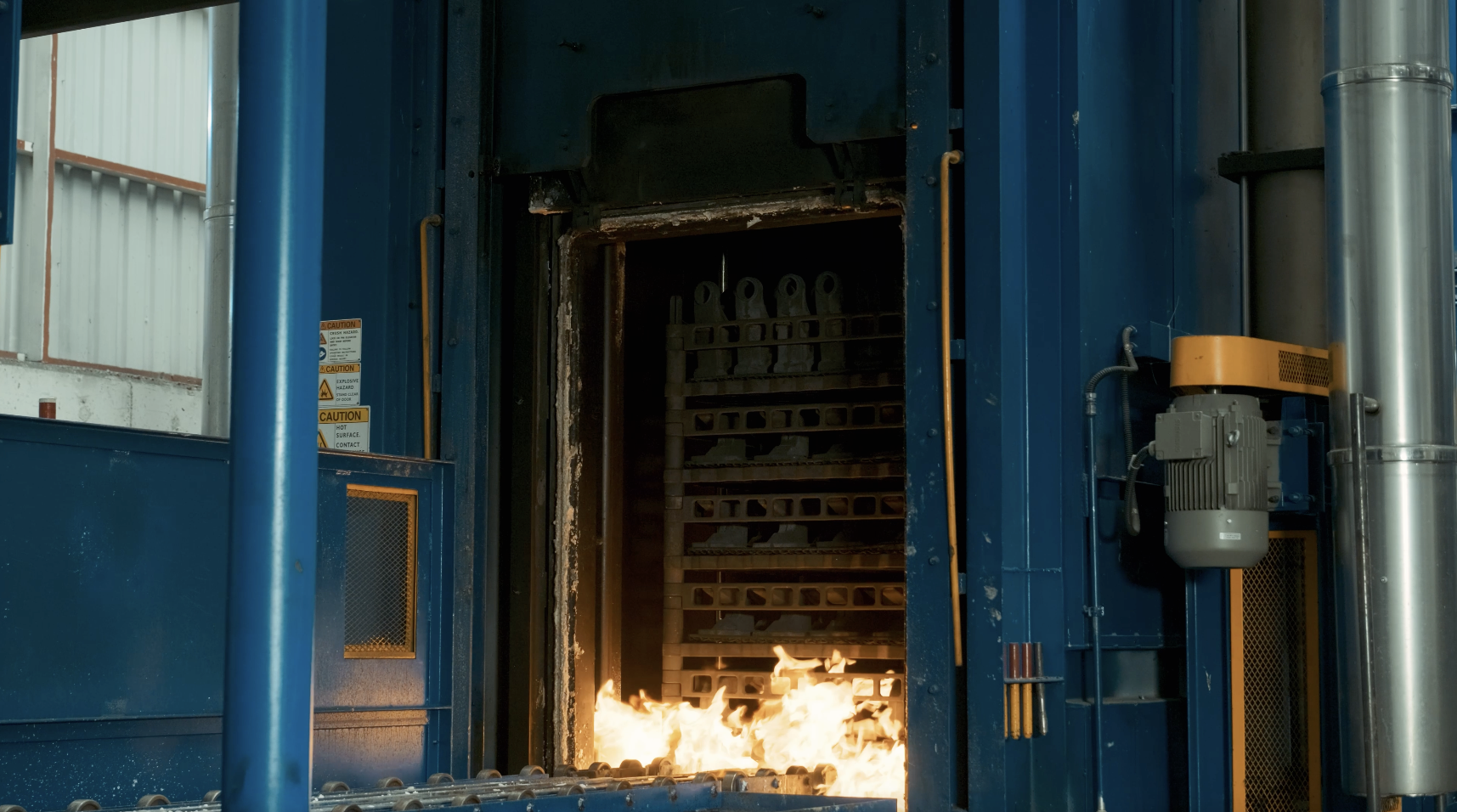

2 x Universal Batch Quench-Type Austempering Systems

Furnace Size: 900x1800x1400mm (36x72x56 in)

Can thru-harden up to 150 mm (6 in) cross sections

Expertise in machining pre- & post-austempering

Integrated casting, heat treatment and machining under one-roof
